Construction of the Princeton, Eastman and Cambridge garage doors (Townships Collection)

Technical Specifications

Features

  • R-16 thermal resistance ?
  • Thickness: 2 ⅜"
  • Polyurethane Insulation
  • Galvanized steel (light woodgrain finish)
  • Dura+ hardware ?

Sizes

  • Widths from 8’ to 18’, in 1” increments.
  • Princeton heights from 7’ to 8’, Eastman and Cambridge heights from 6’6” to 8’, in 3” increments.

Please contact us for more details on oversized doors available.

Layouts

Princeton

The Princeton is only manufactured with a 30" high Panoramic section.

Princeton P-11

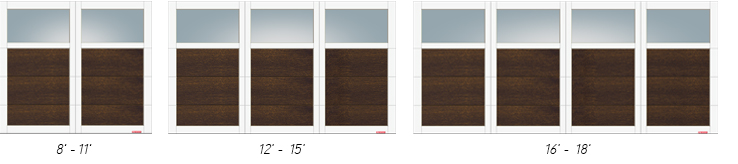

Layouts Princeton P-11

Princeton P-11

Princeton P-11 - 2 bays

8' to 11'

Princeton P-11 - 3 bays

12' to 15'

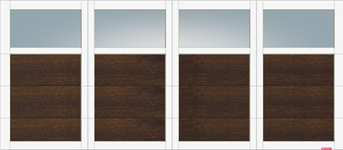

Princeton P-11 - 4 bays

16' to 18'

Princeton P-12

Layouts Princeton P-12

Princeton P-12

Princeton P-12 - 2 bays

8' to 11'

Princeton P-12 - 3 bays

12' to 15'

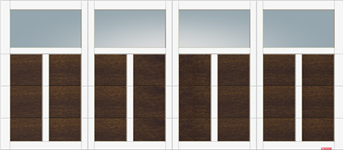

Princeton P-12 - 4 bays

16' to 18'

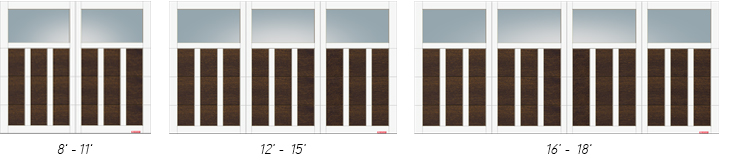

Princeton P-13

Layouts - Princeton P-13

Princeton P-13

Princeton P-13 - 2 bays

8' to 11'

Princeton P-13 - 3 bays

12' to 15'

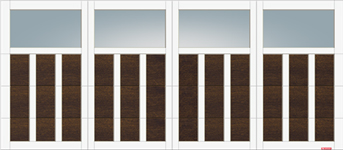

Princeton P-13 - 4 bays

16' to 18'

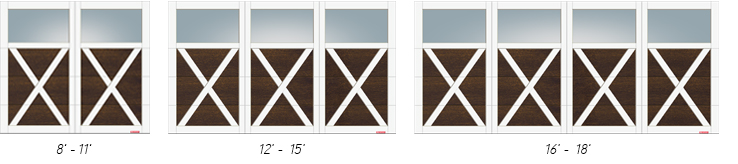

Princeton P-21

Layouts - Princeton P-21

Princeton P-21

Princeton P-21 - 2 bays

8' to 11'

Princeton P-21 - 3 bays

12' to 15'

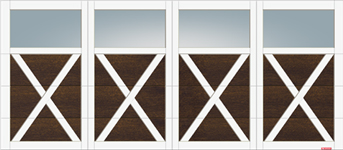

Princeton P-21 - 4 bays

16' to 18'

Princeton P-22

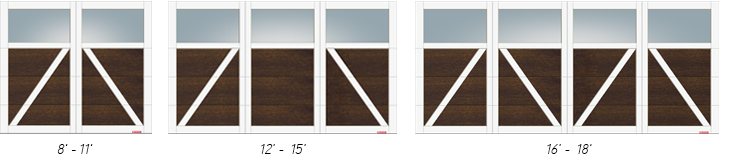

Layouts - Princeton P-22

Princeton P-22

Princeton P-22 - 2 bays

8' to 11'

Princeton P-22 - 3 bays

12' to 15'

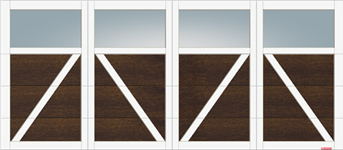

Princeton P-22 - 4 bays

16' to 18'

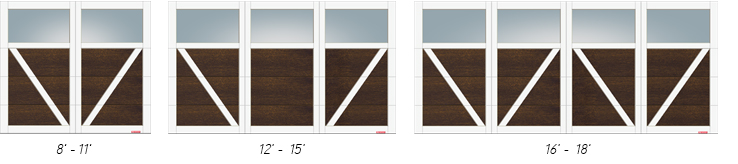

Princeton P-23

Layouts - Princeton P-23

Princeton P-23

Princeton P-23 - 2 bays

8' to 11'

Princeton P-23 - 3 bays

12' to 15'

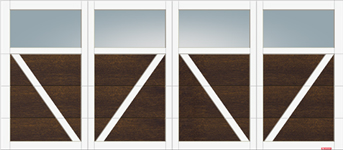

Princeton P-23 - 4 bays

16' to 18'

Example of panoramic for Princeton and Eastman

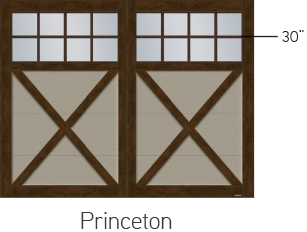

Princeton - Panoramic Example

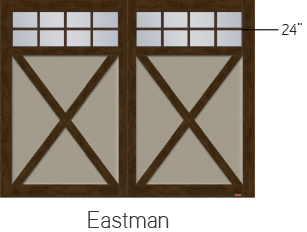

Eastman - Panoramic Example

Eastman

The top section of the Eastman can have a 24" high Panoramic section, regular windows, or no windows.

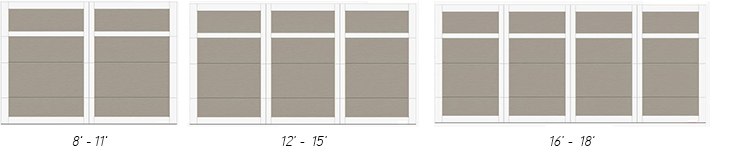

Eastman E-11

Eastman E-11

Eastman E-11

E-11, 2 bays

8' to 11'

E-11, 3 bays

12' to 15'

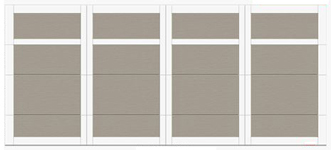

E-11, 4 bays

16' to 18'

Eastman E-12

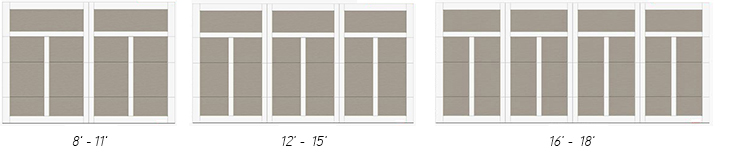

Eastman E-12

Eastman E-12

E-12, 2 bays

8' to 11'

E-12, 3 bays

12' to 15'

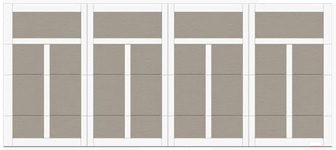

E-12, 4 bays

16' to 18'

Eastman E-13

Eastman E-13

Eastman E-13

E-13, 2 bays

8' to 11'

E-13, 3 bays

12' to 15'

E-13, 4 bays

16' to 18'

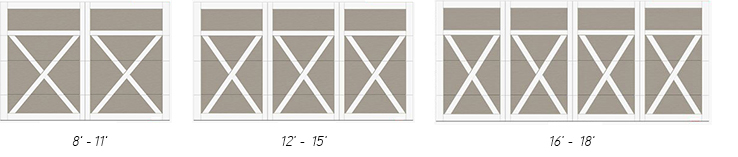

Eastman E-21

Eastman E-21

Eastman E-21

E-21, 2 bays

8' to 11'

E-21, 3 bays

12' to 15'

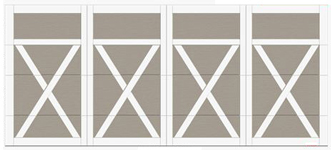

E-21, 4 bays

16' to 18'

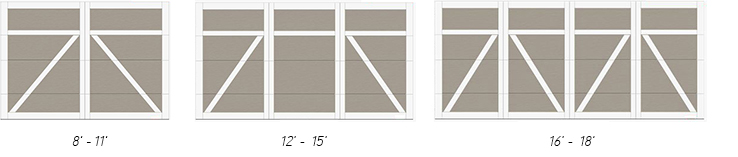

Eastman E-22

Eastman E-22

Eastman E-22

E-22, 2 bays

8' to 11'

E-22, 3 bays

12' to 15'

E-22, 4 bays

16' to 18'

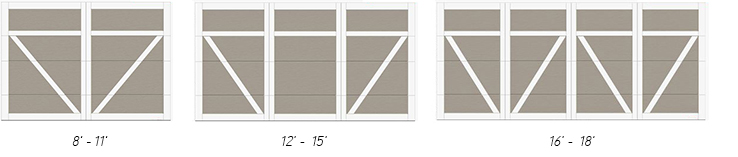

Eastman E-23

Eastman E-23

Eastman E-23

E-23, 2 bays

8' to 11'

E-23, 3 bays

12' to 15'

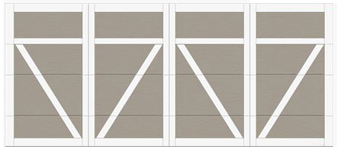

E-23, 4 bays

16' to 18'

Cambridge

Due to the architecture of the Cambridge, section heights are not identical.

Cambridge - Height 7 feet
Cambridge - Height 2 bays

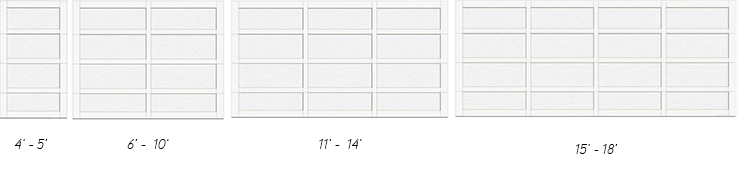

Cambridge CL (Stretched)

Cambridge CL

Cambridge CL (Stretched)

Cambridge CL 4ft

4' to 7'

Cambridge CL 8ft

8' to 9'

Cambridge CL 10ft

10' to 14'

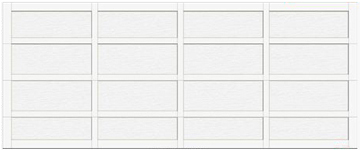

Cambridge CL 15ft

15' to 18'

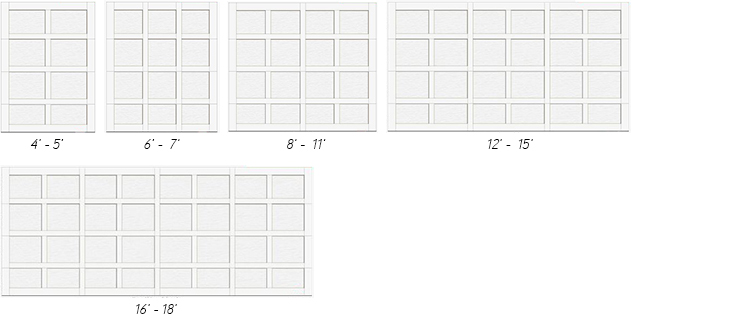

Cambridge CM (Traditional)

Cambridge CM

Cambridge CM (Traditional)

Cambridge CM 4ft

4' to 5'

Cambridge CM 6ft

6' to 7'

Cambridge CM 8ft

8' to 11'

Cambridge CM 12ft

12' to 15'

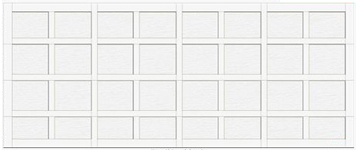

Cambridge CM 16ft

16' to 18'

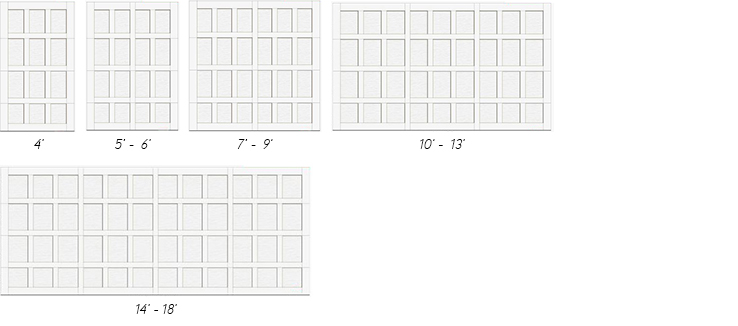

Cambridge CS (Condensed)

Cambridge CS

Cambridge CS (Condensed)

Cambridge CS 4ft

4'

Cambridge CS 5ft

5' to 6'

Cambridge CS 7ft

7' to 9'

Cambridge CS 10ft

10' to 13'

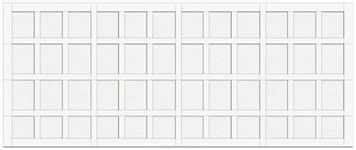

Cambridge CS 14ft

14' to 18'

Garaga construction makes all the difference

Durable icon

Rugged & Durable

Termally Efficient icon

Thermally Efficient

Refined icon

Refined Design

Durable icon

Rugged & Durable

Termally Efficient icon

Thermally Efficient

Refined icon

Refined Design

 1
INTERLOKTM JOINT
Eco-Energetic icon Located between sections, this joint blocks air infiltration due to its triple‑contact weatherseal.
Durable icon Makes sections very strong as it is mechanically interlocked and not bonded.

 2
WOOD END BLOCKS
Eco-Energetic icon The most effective thermal breaks, they eliminate any transfer of cold or heat between materials.

 3
REINFORCED METAL PLATES
Durable icon With 14‑gauge thickness, they are used to solidly attach hinges, handles and operator bracket.

 4
HIGH-PERFORMANCE WEATHERSTRIPPING
Eco-Energetic icon Our weatherstripping ensures increased weathertightness and stays flexible through the coldest temperatures.

 5
POLYURETHANE
Eco-Energetic icon High-pressure injected foam provides R‑16 thermal resistance for 2 ⅜” doors ( 1 ¾” plus overlays).
Durable icon Because it adheres to the section walls, it provides a high level of rigidity to the door.

 6
CONTINUOUS WOODGRAIN
Refined icon Up close or at a distance, our embossed woodgrain finish is flawless and very refined.

 7
OVERLAYS
Refined icon LaserCraftTM Technology is used for a precise fit between overlays and our PermafixTM Process literally fuses them to the steel sections.

Construction - Princeton, Cambridge and Eastman

Econo icon

To save energy, all components of a garage door must be taken into consideration (joints between sections, weatherstripping, end blocks, etc.) and not just its thermal resistance R-value as that only refers to the construction of the sections.
